Ultrasonic Polishing System

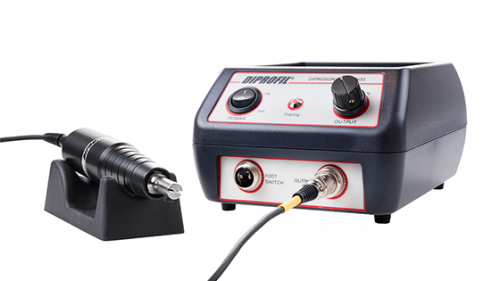

The Diprofil Ultrasonic Polishing System type Diprosonic DUS-300 is an excellent choice for different polishing applications involving small and intricate surfaces. The very short stroke length (10-35 µm) combined with a high frequency (18-25 kHz) makes it ideal for polishing of slots and ribs and other surfaces in narrow and confined spaces. For this kind of delicate work, the Diprosonic DUS-300 will give you precise finishing with rapid stock removal in a relatively clean environment without the need for lubricating fluids.

The Ultrasonic Polishing System is excellent for removing the hard “scale” left by the Electrical Discharge Machining (EDM) process, especially when used together with Ceramic fibre stones (Super Stones) or Diamond Super Stones.

Item No: DUS-300

Main features:

  • Operated by hand or by foot-switch

  • Automatically finds the right frequency for each tool

  • 36W max output

  • Two output levels (high/low)

  • Capable of long working periods

  • Auto feedback system

  • Small, compact and low weight

Items and accessories included in the DUS-300 package:

  • Ultrasonic hand-piece (DUS-300-HP)

  • Handpiece cable (DUS-5)

  • Power cord – US standard 110V

  • Power cord – European standard 220V

  • Foot-switch (DUS-300-FS)

  • 10/11 mm spanner

  • 2,5 mm hexagonal-key

  • Handpiece cradle

  • Tool-holder 1,1 mm (DUS-11)

  • Tool-holder Ø 3.0 mm (DUS-30)

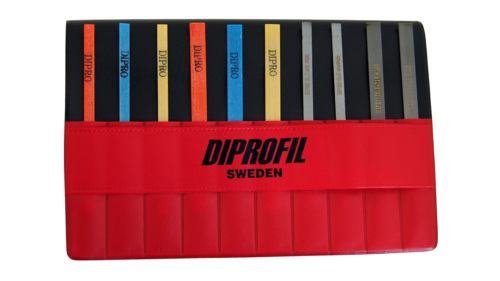

  • Tool-kit (DUS-300-TK) including 6 fibre stones and 4 sintered diamond files

Interested in this product?

Contact Us

Technical data

Input: AC 90 – 250 V, 50/60 Hz
Ultrasonic power output: 36 W
Frequency: 18 – 25 kHz
Stroke length: 10 – 35 µm
Dimensions Control Unit: 144(W) x 195(D) x 95(H) mm
Weight Control Unit: 658 g
Cord length: 1500 mm
Dimensions Hand-piece: Ø 30 x 131 mm
Weight Handpiece: 185 g
