Air-Driven Di-PRO Machine

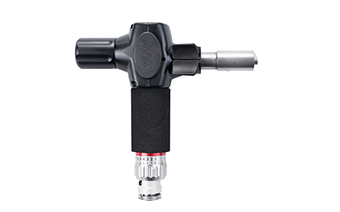

The Air Driven Di-PRO® machine type FXL-N has a built-in air-motor and should be driven by compressed and oil mist lubricated air. The built-in air-motor may be damaged, if operated with un-lubricated air.
The Diprofil Quick Coupling with on/off regulator type HSL-M and Fog Lubrication Unit type MFB (or similar of other brands) should be used for connection to your compressed air system. NOTE! Protect the air inlet from dust and dirt, when not in operation.
|Speed (maximum):||7.000 strokes/min.|
|Speed (recommended):||5.000 – 6.000 strokes/min.|
|Stroke length:||0 – 6 mm|
|Stroke length (recommended):||0.5 - 3 mm|
|Tool-holder:||Ø 6,4 mm (suitable for tool shanks Ø 2 – Ø 6,4 mm)|
|Weight of inserted tool:||Recommended 1-15 g|
|Machine weight:||920 g|
|Oil consumption:||Minimum 30 mm³/min. at maximum speed (about 2 drops/min.)|
|Air pressure:||4 bar (58 psi)|
|Air consumption:||Approx. 60 l/min at 7.000 strokes/min.|
|Noise level:||Not exceeding 75 dB(A) at 7.000 strokes/min.|
|Vibration levels:||Not exceeding 2.5 m/s² when operated according to the Operation Guide. Please see the downloadable Operation Guide for further information.|
