Power Unit DPU-3

This compact and ergonomic power unit is designed for use together with dedicated rotary hand-pieces and Classic and Di-PRO reciprocating polishing/filing machines with carbon brush (DC) micro-motors. The unit is supplied with a hand-piece cradle and a foot control type DPU-3-FC for optional speed adjustment.

The input voltage can be easily set at either 110 or 220V by means of a switch at the back of the unit.

Power Units

Main Features:

  • High torque
  • Electrical feedback circuitry
  • Continuously variable speed
  • Forward/reverse switch
  • Automatic overload protection

Interested in this product?

Contact Us
Technical Data
Related Products
Input: AC 110 - 120 V or 200 - 240 V at 50/60 Hz
Output: DC 0 – 32 V (1,2 A)
Power: Max. 100 W
Weight power unit: 1,70 kg
Dimensions power unit: W115 x D147 x H96 mm
Weight foot control: 585 g
Micro Motor-Driven Di-PRO Machines
Micro-Motor Driven Classic Machines
Micro-Motor Driven Hand-pieces
Carbon Brush (DC) Micro-Motor

Power Units

TPU-20

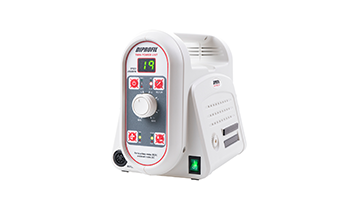

Power Unit TPU-20
