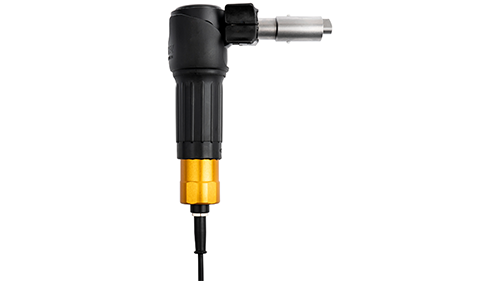

Air Driven Classic Machine
The Air Driven Classic Machine type FPL/R has a built-in air motor and should be driven by compressed and oil mist lubricated air. The built-in air-motor may be damaged, if operated with non-lubricated air.
The Diprofil quick-coupling with on/off regulator type HSL-M and fog lubrication unit type MFB (or similar to other brands) should be used for connection to your compressed air system. NOTE! Protect the air inlet from dust and dirt, when not in operation.
Item No:
Technical Data
Related Videos
Spare Parts
Related Products
| Speed (maximum): | 8.000 strokes/min. |
| Speed (recommended): | 5.000 – 6.500 strokes/min. |
| Stroke length: | 0 – 6 mm |
| Stroke length (recommended): | 0.5 - 3 mm |
| Tool-holder: | Ø 6.4 mm (suitable for tool shanks Ø 2 – Ø 6,4 mm) |
| Weight of inserted tool: | Recommended 1-15 g |
| Machine weight: | 740 g |
| Oil consumption: | Minimum 30 mm³/min. at maximum speed (about 2 drops/min.) |
| Air pressure: | 4 bar (58 psi) |
| Air consumption: | Approx. 65 l/min at 8. 000 strokes/min. |
| Noise level: | Not exceeding 70 dB(A) at 7.000 strokes/min. |
| Vibration levels: | Please see the downloadable Operation Guide. |
