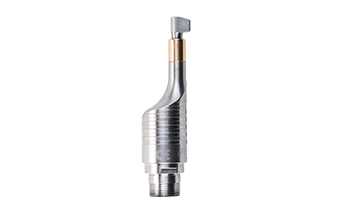

Flexible-Shaft Driven Mini Polishing Machines
The flexible-shaft driven Dipromini polishing/filing machines should be connected to, and driven by, an electrical motor with speed control, e.g. the Diprofil type DSE-47, and a flexible shaft with slip-joint connection (European standard) or ball-joint connection (US standard). Corresponding motors of other brands may also be used.
Available with either a 0.5, 1.0 or 1.5 mm stroke length.
| Stroke length | Connection | Item No. |
|---|---|---|
| 0.5 mm | Slip-joint connection | FMR/S5 |
| 1.0 mm | Slip-joint connection | FMR/S10 |
| 1.5 mm | Slip-joint connection | FMR/S15 |
| 0.5 mm | Ball-joint connection | FMR/B5 |
| 1.0 mm | Ball-joint connection | FMR/B10 |
| 1.5 mm | Ball-joint connection | FMR/B15 |
Technical Data
Spare Parts
| Speed (maximum): | 10.000 strokes/min. |
| Speed (recommended): | 6.000 – 9.000 strokes/min. |
| Stroke length: | 0.5, 1.0 or 1.5 mm (depending on the model) |
| Tool-holder: | Ø 3,6 mm |
| Weight: | Approx. 120 g |
| Noise level: | < 70 dB(A) at 9.000 rpm |
| Vibration levels: | Please see the downloadable Operation Guide. |
