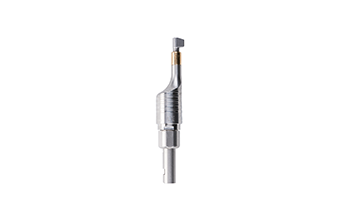

Micro-motor Driven Mini Polishing Machines

The micro-motor driven Dipromini Polishing/Filing Machines are available with connection for several different brands of micro-motor systems.

The Dipromini with Diprofil micro-motor connection should be connected to the Diprofil micro-motor type HPM-B1 and controlled by the Power Units type DPU-3 or TPU-20.

All models (except the one with an E-fit standard connection) are available with either a 0.5, 1.0 or 1.5 mm stroke length.

Stroke length       Connection                                                     Item No.
0.5 mm Diprofil   FMR/D5
1.0 mm Diprofil   FMR/D10
1.5 mm Diprofil   FMR/D15
0.5 mm NSK EMax, Eneska 3-1 and Eneska 3-2   FMR/N5
1.0 mm NSK EMax, Eneska 3-1 and Eneska 3-2   FMR/N10
1.5 mm NSK EMax, Eneska 3-1 and Eneska 3-2   FMR/N15
0.5 mm NSK Espert and Eneska 4-1   FMR/E5
1.0 mm NSK Espert and Eneska 4-1   FMR/E10
1.5 mm NSK Espert and Eneska 4-1   FMR/E15
0.5 mm Gesswein, Argofile, Urawa Uhandy   FMR/G5
1.0 mm Gesswein, Argofile, Urawa Uhandy   FMR/G10
1.5 mm Gesswein, Argofile, Urawa Uhandy   FMR/G15
1.0 mm E-fit Standard   FMR/I10

Operation Guide

Interested in this product?

Contact Us

Technical data

Speed (maximum): 10.000 strokes/min.
Speed (recommended): 6.000 – 9.000 strokes/min.
Stroke length: 0.5, 1.0 or 1.5 mm (depending on the model)
Tool-holder: Ø 3,6 mm
Weight: approx. 120 g
Noise level: < 70 dB(A) at 9.000 rpm
Vibration levels: Please see the downloadable Operation Guide.
